Home > Professional Curtain Wall Window Manufacturer > Door&Window > Window Series // Zenith 96 Series Bridge Suspension Window
  • Window Series // Zenith 96 Series Bridge Suspension Window,Juheintl,Window Series // Zenith 96 Series Bridge Suspension Window
  • Window Series // Zenith 96 Series Bridge Suspension Window,Juheintl,Window Series // Zenith 96 Series Bridge Suspension Window

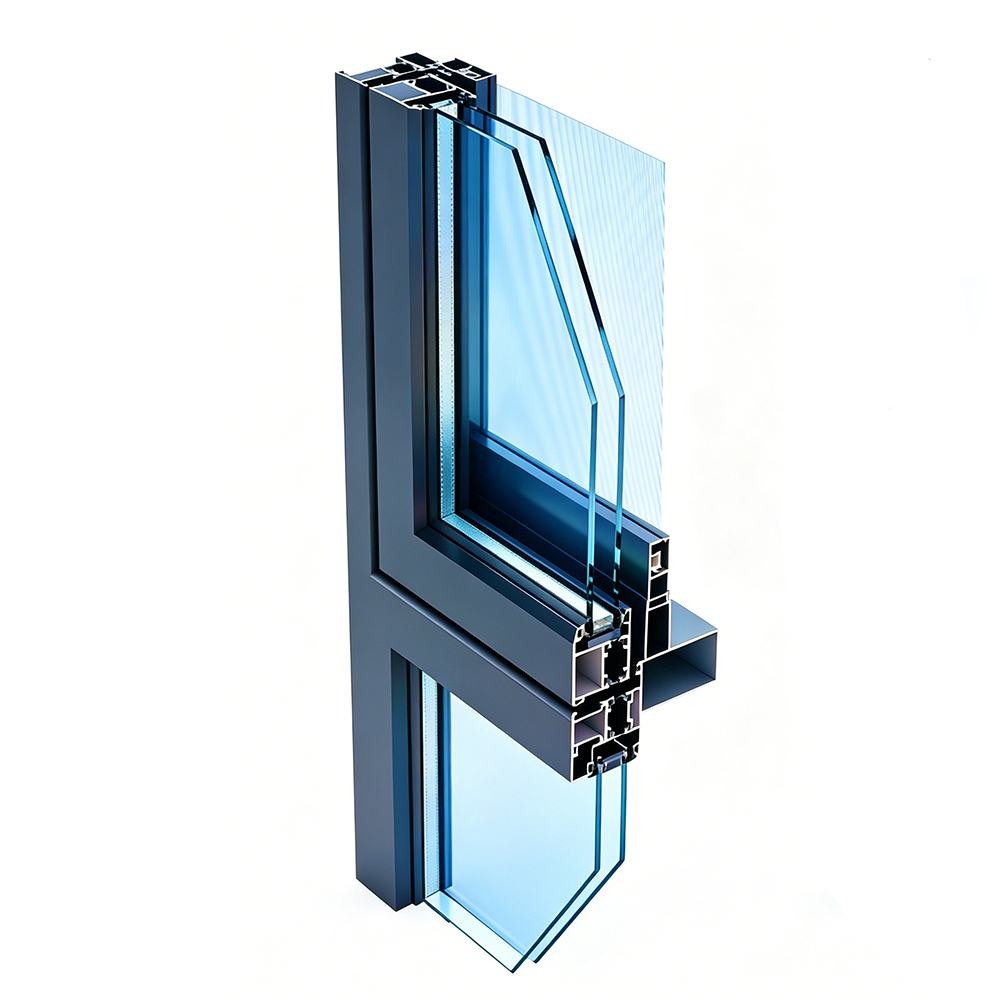

Window Series // Zenith 96 Series Bridge Suspension Window

No.Zenith 9
Air Tightness
Level 5
Water Tightness
Level 5
Wind Pressure Resistance
Level 10
Thermal Insulation
1.5 W/(㎡·K)
Sound Insulation
42db
GET A QUOTE
Add to Quote List Durchsuchen Sie die Liste
  • Window Series // Zenith 96 Series Bridge Suspension Window,Juheintl,Window Series // Zenith 96 Series Bridge Suspension Window

  • Description

  • Key Features

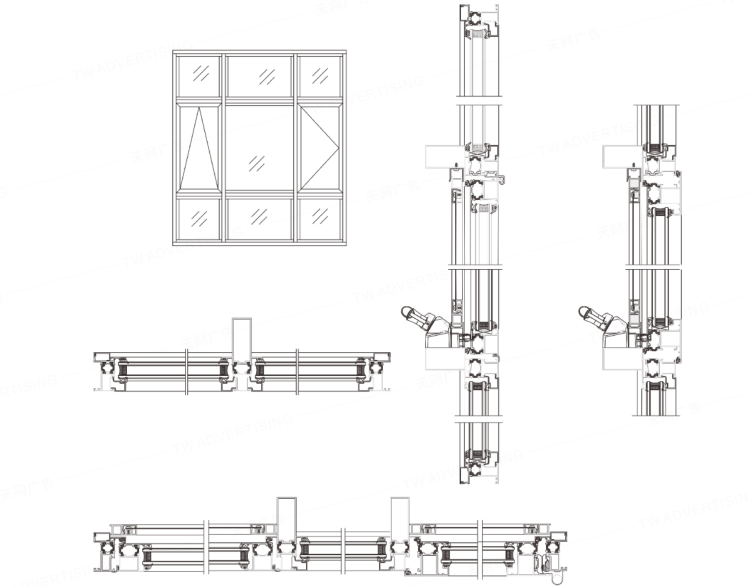

  • Typical Node Diagram

  • Image Gallery

  • Thermal break products, belonging to high-end grade.
  • Equipped with insulated glass, it enhances the overall thermal insulation, heat preservation and sound insulation performance, and is a low-carbon, green and environmentally friendly product.
  •  In line with local Australian construction habits, both wooden wall and brick wall installation methods have been taken into account.
  •  It features traditional hung windows and can also be made into side-hung windows.
  • Equipped with fixed window screens, it ensures stable performance in mosquito and insect prevention.


英文参数项 对应参数值
Insulation strip 14.8mm
Profile thickness 1.4mm
Frame visual surface 41.8mm
Visible surface of mullion 54mm
Fan visual surface 42.5mm
Glass specifications (frame, fan) 5mm+12A+5mm
Accessories brand Juhe System Independently developed
Window screen scheme and mesh type Nylon mesh fixed yarn
Available colors Light sensitive skin black, starry sky gray
Notes Living room, bedroom

Unitized Hidden-Frame High-End Curtain Wall Series

The maximum single unit height reaches 6800mm, with a unit panel width up to 1800mm. The overall facade can be designed in unlimited continuous width.All products adopt factory standardized production and prefabricated assembly construction to ensure stable and reliable quality.Both electric and manual opening modes are available for selection.
