Minimalist frame design paired with oversized glass delivers a 180° panoramic viewing experience;
Two-stage lifting mechanism (fixed lower sash + liftable upper sash) achieves a 50% maximum opening area, combining panoramic views and ventilation in one solution;
Maximum dimensions: 4800mm (width) × 2600mm (height);
Equipped with rain sensor auto-close, remote control operation, and electric opening/closing for effortless, worry-free use;
Built-in infrared anti-pinch function ensures enhanced safety and peace of mind.

Basic Product Parameters	Specifications
Insulation Strip	12mm
Profile Thickness	2.0-5.0mm
Frame Visible Width	Side Frame: 120mm; Top Frame: 205mm
Mullion Visible Width	Mullion/Transom: 20mm
Sash Visible Width	50mm
Glass Specifications (Frame & Sash)	8mm Clear Glass + 16A Air Spacer + 8mm Clear Glass
Hardware Brand	--
Insect Screen Scheme & Mesh Type	Electric Windproof Mesh
Available Colors	Light-Sensitive Matte Black, Hepburn Black-Gray, Starry Sky Gray, Starbucks Coffee
Application Scenarios	Large Apartment Enclosed Balconies
Notes	--

Unitized Hidden-Frame High-End Curtain Wall Series

The maximum single unit height reaches 6800mm, with a unit panel width up to 1800mm. The overall facade can be designed in unlimited continuous width.All products adopt factory standardized production and prefabricated assembly construction to ensure stable and reliable quality.Both electric and manual opening modes are available for selection.

About US

CONTACT US

If you have any queries, get in touch today! Don't hesitate. We try to take the extra step for our customer satisfaction.

First Name*

Last Name*

Email*

Message*

Leading Expert in Building Facade Systems

If you want to custom the unique project solutions for your building, Juheintl is your first choice. Send us your detailed requirements and get an instant quote now.

About Juheintl Group: About us
Services
Projects
Blog
Contact

Products: Curtain Wall Window
Panoramic Door&Window
Thermal Break Window
Sliding Lift Window
Offset Pivot/Sintered Stone Door
European Style Pavilion Solutions
Chinese Style Sunroom Solutions

Follow Us

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

Window Series // Zenith 150 Series Motorized Vertical Lift Window

Description

Key Features

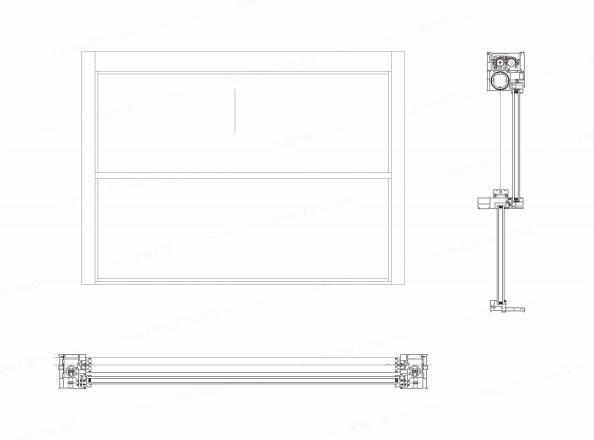

Typical Node Diagram
