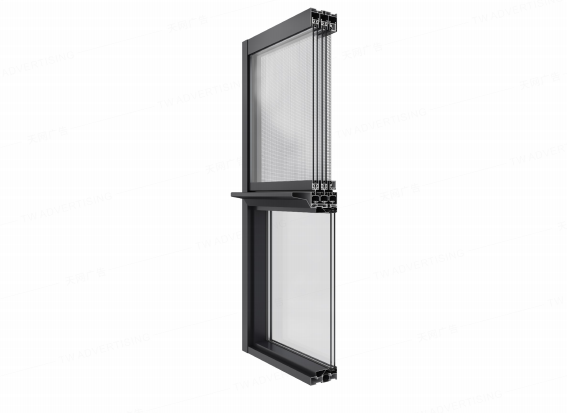

Window Series // Zenith 126 series six track suspended sliding window

Air Tightness
Level 5
Water Tightness
Level 5
Wind Pressure Resistance
Level 10
Thermal Insulation
1.5 W/(㎡·K)
Sound Insulation
42db
  • Window Series // Zenith 126 series six track suspended sliding window,Juheintl,Window Series // Zenith 126 series six track suspended sliding window
  • Description

  • Key Features

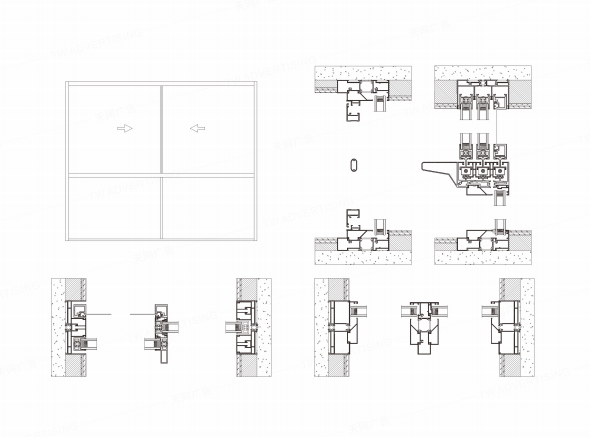

  • Typical Node Diagram

  • Image Gallery

Product Advantages
  1. Opening configurations: 3-track 2-panel with screen, 3-track 4-panel with screen, 3-track 3-panel;
  2. Maximum single unit width up to 6.5 meters;
  3. Maximum opening area per sash up to 3.5 m²;
  4. Achieves up to 1/2 or 2/3 of the total opening area for ventilation.





Parameter Category English Term Specification
Basic Product Parameters Basic Product Parameters
Insulation strip Insulation strip 14.8mm + 20mm
Profile thickness Profile thickness 1.4-3.0mm
Frame visible surface Frame visible surface Frame: 48mm
Upper rail: 68mm
Lower rail: 60mm
Visible surface of mullion Visible surface of mullion Indoor: 30mm
Outdoor: 66.5mm
Sash visible surface Sash visible surface Left/right sash: 28mm
Top/bottom sash: 35mm
Glass specifications Glass specifications 5mm clear glass + 15Ar + 5mm clear glass
Accessories brand Accessories brand Juhe System Independently Developed
Window screen scheme and mesh type Window screen scheme and mesh type High-transparency mesh, high-definition stainless steel mesh
Available colors Available colors Light-sensitive skin black, Hepburn black grey, Starry Sky Grey, Starbar Coffee
Usage scenario Usage scenario Balcony, bedroom
Notes Notes Electric and manual operation options available

Unitized Hidden-Frame High-End Curtain Wall Series

The maximum single unit height reaches 6800mm, with a unit panel width up to 1800mm. The overall facade can be designed in unlimited continuous width.All products adopt factory standardized production and prefabricated assembly construction to ensure stable and reliable quality.Both electric and manual opening modes are available for selection.
