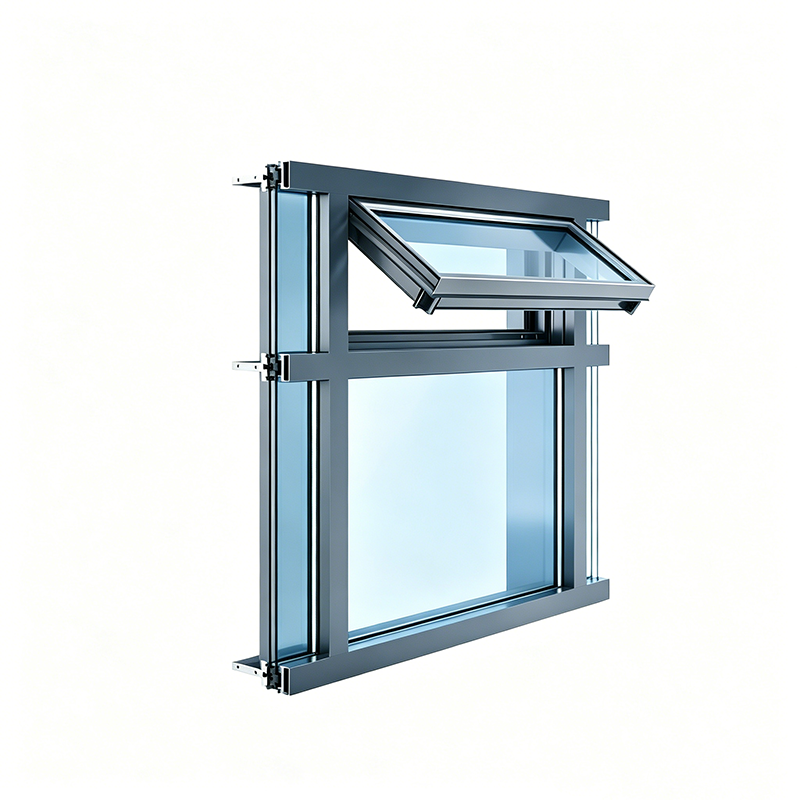

Name: Curtain Wall Window Series // Zenith Solid Ultra-Narrow 20 Exposed Frame Curtain Wall
Brand: Juheintl
Availability: InStock
Rating: 5 (1 reviews)

Air Tightness

Level 5

Water Tightness

Level 5

Wind Pressure Resistance

Level 10

Thermal Insulation

1.5 W/(㎡·K)

Sound Insulation

42db

GET A QUOTE

Add to Quote List Durchsuchen Sie die Liste

Description
Key Features

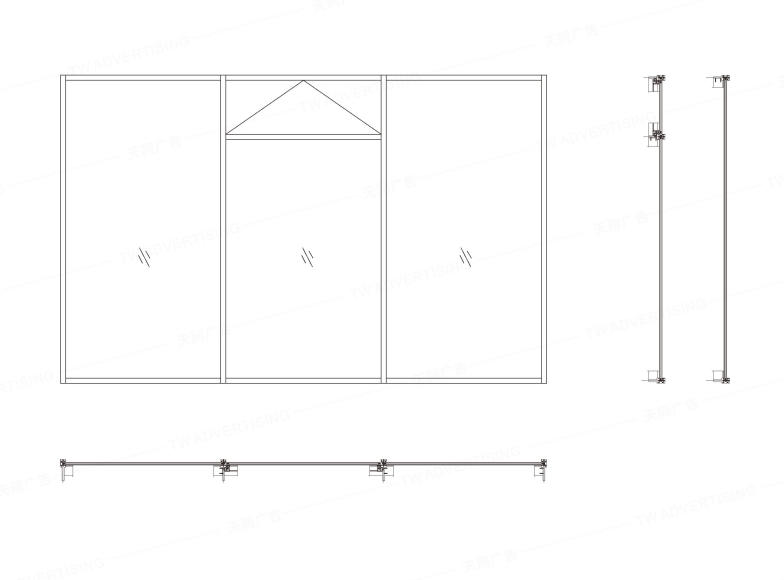

Typical Node Diagram
Project Application

Product Advantages

Minimalist narrow-edge design style
Solid mullions with excellent mechanical performance
The top choice for large span curtain wall projects

Parameter	Specification
Insulation Strip	Non-broken bridge
Profile Thickness	20 mm
Frame Visual Surface	Outdoor: 50 mm / Indoor: 20 mm
Visible Surface of Mullion	Outdoor: 50 mm / Indoor: 20 mm
Sash Visual Surface	—
Glass Specifications (Frame & Sash)	5mm Clear Glass + 20A + 5mm Clear Glass
Accessories Brand	Juhe independent research and development
Window Screen Scheme & Mesh Type	—
Available Colors	Light Sensitive Skin Black, Hepburn Black Gray, Starry Sky Gray, Starbucks Coffee
Usage Scenario	Villa Lobby, Large Flat Balcony
Notes	—

Unitized Hidden-Frame High-End Curtain Wall Series

The maximum single unit height reaches 6800mm, with a unit panel width up to 1800mm. The overall facade can be designed in unlimited continuous width.All products adopt factory standardized production and prefabricated assembly construction to ensure stable and reliable quality.Both electric and manual opening modes are available for selection.

About US

Curtain wall window

What curtain wall and window systems do you mainly offer? And which buildings are they suitable for?

We mainly specialize in traditional stick curtain wall, unitized curtain wall, SSG (Structural Silicone Glazing) curtain wall, slim-frame panoramic curtain wall, and lift-and-slide door curtain wall systems. Our products are applicable to residential buildings, hotels, office buildings, commercial complexes and other low-rise, mid-rise and high-rise projects, which can meet different architectural needs such as energy saving, sound insulation, waterproofing and wind pressure resistance.

What performance standards can your products meet? Do you have any certifications?

Our curtain wall and window systems strictly comply with GB (Chinese National Standard), ASTM (American Standard) and EN (European Standard). We can provide:

Test reports on water tightness, air tightness and wind pressure resistance
Sound insulation, heat insulation (U-value) and energy-saving parameters
Support for export certifications such asCE, ASTM and CSA

All profiles, glass, hardware and gaskets adopt national standard/brand accessories with stable and reliable quality.

re you a factory or a trading company? What is your production capacity?

We are a source factory based in Foshan, with our own extrusion, spraying, deep processing and assembly production lines. We support OEM/ODM customization, with stable monthly production capacity, and can undertake bulk export orders, engineering projects and mass orders. We independently control the entire process from design, deepening, production to delivery.

Can you provide detailed drawings, node drawings, BIM/3D models?

Yes, we can provide:

Curtain wall and window node drawings, section drawings and detail drawings
3D renderings and product models
BIM models, CAD drawings and technical parameter sheets

We support cooperating with design institutes, general contractors and owners to complete drawing confirmation and technical disclosure.

s the installation of curtain walls and windows complicated? Do you provide installation guidance?

Our systems are standardized in design and easy to install. Meanwhile, we provide:

Detailed installation manuals, node diagrams and video guidance
On-site technical support for large-scale projects
Full docking to solve problems such as waterproofing, closing and commissioning during installation

We ensure installation efficiency and project quality.

What is the lead time for orders? How about the packaging and export process?

- Regular orders: 15–25 days (depending on quantity and drawing complexity)

- Packaging: Export-standard plywood wooden cases + protective film + corner protectors, suitable for sea/land transportation

- We can provide a full set of export documents such as packing list, commercial invoice and bill of lading, and support trade terms such as FOB and CIF.

What about after-sales service and quality guarantee?

All products go through multiple quality inspections before leaving the factory to ensure defect-free delivery.

- We provide quality guarantee service under normal use conditions.

- Our after-sales team responds quickly, providing technical solutions, accessory replacement and problem troubleshooting.

- Long-term cooperative projects can enjoy priority scheduling and exclusive technical docking.
